Description

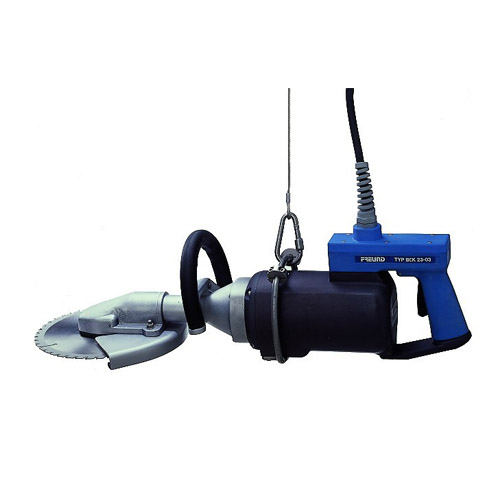

Circular Bacon Saw
Circular-Bacon-Saw with horizontal sawblade for medium and high throughput plants e.g. for primal breaking, cutting out the backbone of bacon-pigsides etc.
- circular sawblade gross toothed KGZ
- spiral cable SK
- round handle R (D-type)
- sawblade-stop in less than 3 seconds after switch-off (EU-Normative)
- mechanical motorbrake MMB
physical characteristics
- Weight 13,0 kg
- Diameter 230 mm
- Cutting depth 75 mm
- Bore 52 mm
- Speed 952 m/min
- Revolutions 1320 /min.
electronic input
- Phase 3
- Voltage 400 V
- Protection 65 IP
electronic output
- Power 1300 Watt (50Hz)/VA
- output_leistung_watt_60hz
- 1300 Watt (60Hz)/VA
- output_leistung_hp_50hz
- 1,8 hp (50Hz)/VA
- output_leistung_hp_60hz
- 1,8 hp (60Hz)/VA
